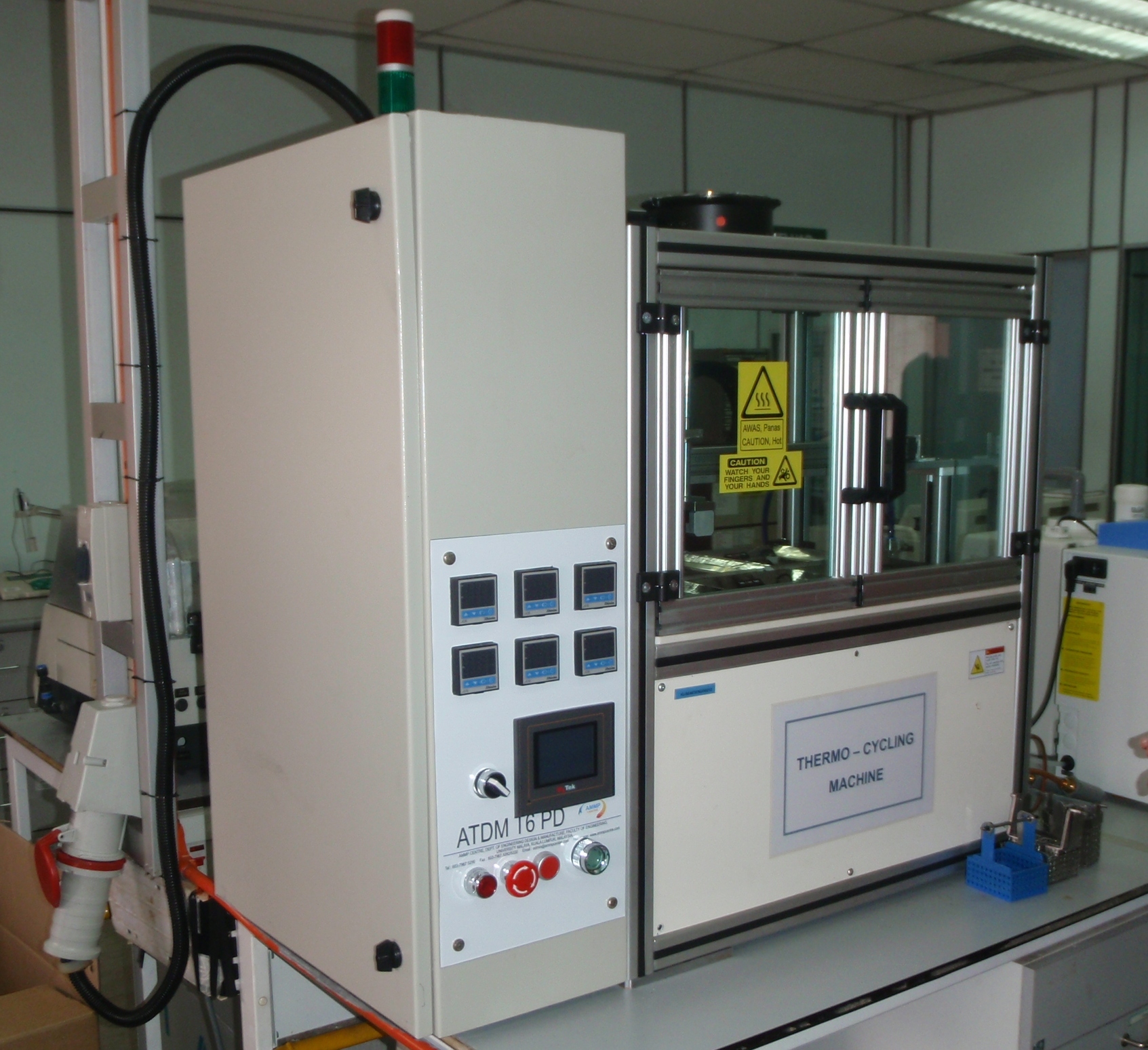

The Automatic Thermocycling Dipping Machine (ATDM)
The Automatic Thermocycling dipping machine is designed for simulation of oral temperature changes. The sample is immersed cyclically in baths of hot, warm and cold fluids. The machine is controlled by programmable logic controller (PLC) system with a touch screen as the interface for users. A simulation cycle was built as a mobile arm with a basket of one or more profiles, where the user can select two or three types of temperature. All six tanks are independent of each other and can be controlled via a touch screen.

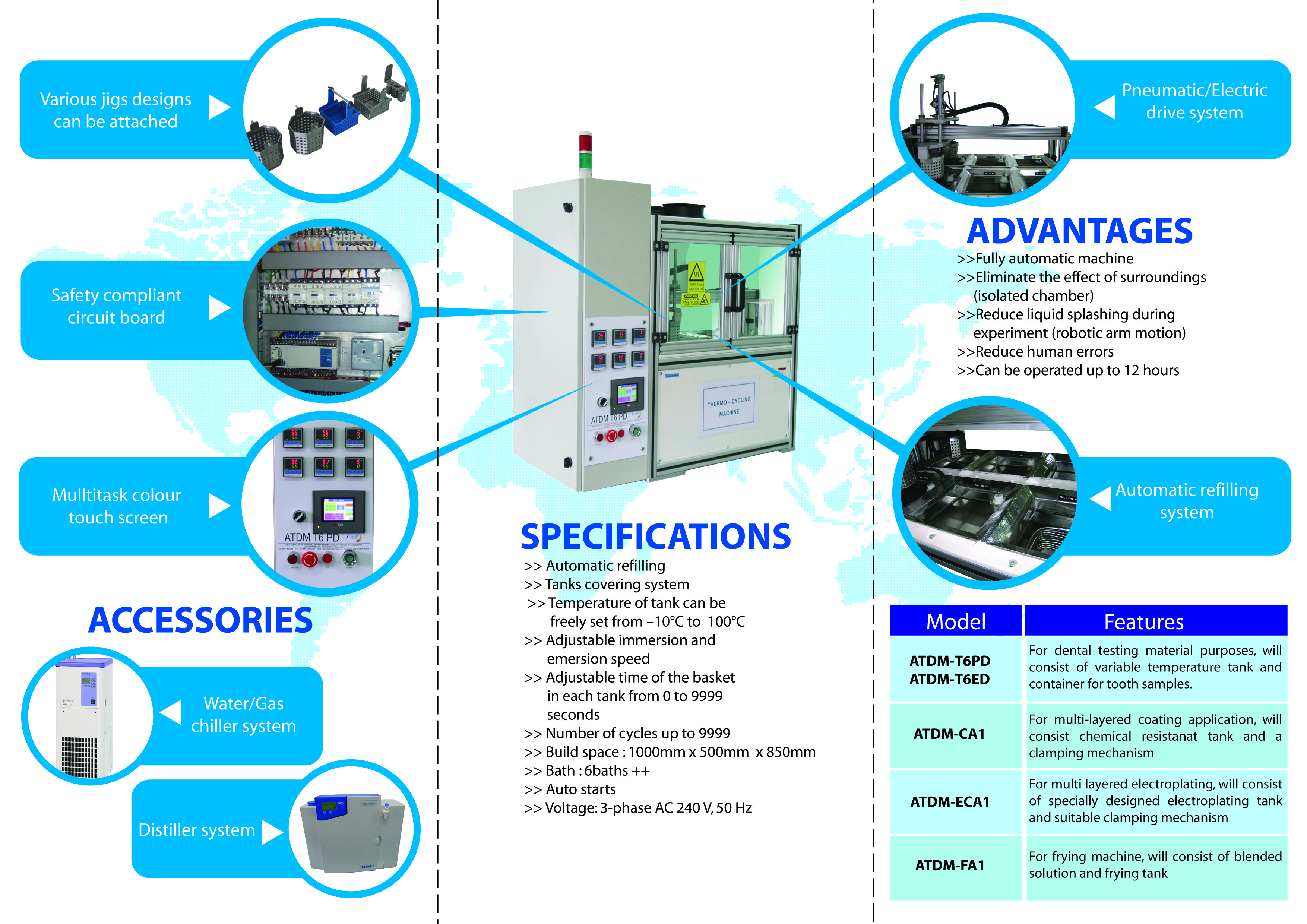

A base machine will be designed which will consist of the dipping mechanism and controller. The modules which can be added as a plug-and-play solution:
|
Module |
Features |
| ATDM-T3ED
ATDM-T6ED ATDM-T3PD ATDM-T6PD |
For dental material testing purposes, will consist of variable temperature tank and container for tooth samples |
| ATDM-CA1 | For multi-layered coating application, will consist of chemical resistant tank and a clamping mechanism |
| ATDM-ECA1 | For multi layered electroplating, will consist of specially designed electroplating tank and suitable clamping mechanism |
| ATDM-FA1 |
For frying machine, will consist of blended solution and frying tank |
